Automatic butt welding machine 355MM

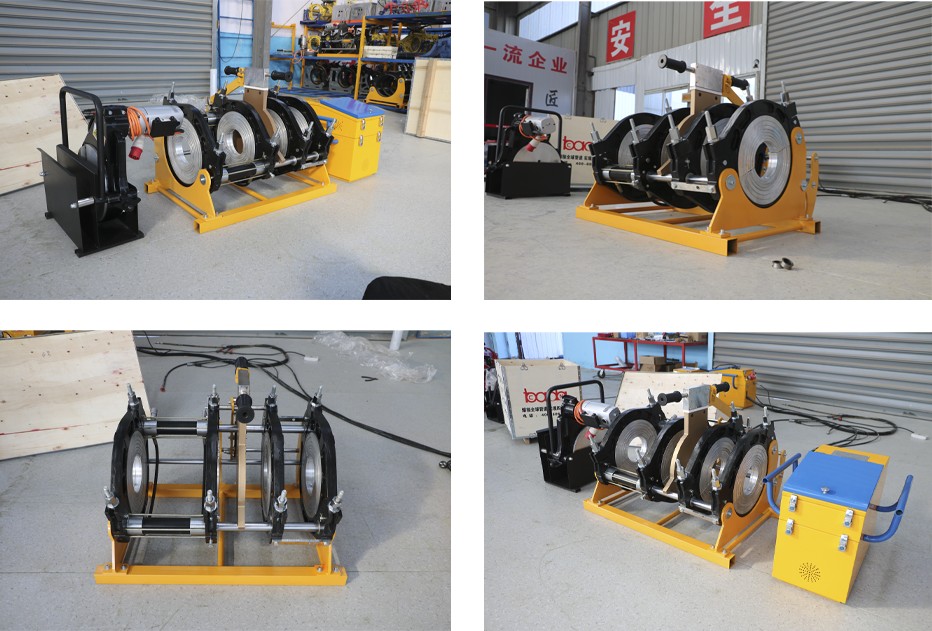

Automatic Butt Welding Machine
160mm-355mm,Automatic butt fusion welding machine is a new generation of polyethylene pipe automatic welding equipment. The butt fusion welding machine can complete the welding process automatically according to the national standard, so as to ensure the reliability of the welding and eliminate the interference of human factors as far as possible.

Share :

组 101.png

Equipment SpecificationsABBD355-160
Power Supply Voltage220V  50HZ
Control Box Power900W
Milling Cutter Head Motor Power1360W
Heating Plate Power3500W
Total Welding Power5760W
Ambient Temperature-10~ +40°
Working Pressure Range≥10Mpa

Welding Range160mm-355mm
Pressure Resolution0.01MPa
Pressure Accuracy0.1MPa
Time Resolution0.1S
Time Accuracy0.1S
Temperature Control Precision of Hot Plate±3℃
Cylinder Block Area2000m㎡
Heating Plate Ejection Time1.5-3.5S


1. Preloaded major welding standard(DVS/GIS/TSG D2002-2006), fully record the welding parameters, Welding record is true no cheat.

2. Welding process controlling by CNC system etc., as well as the processing time to reduce human interference and ensure welding accuracy.

2. Hydraulic station of integrated enclosure shielding splash and dirt.

4. Integrated hydraulic station with big touch screen control system.

5. Data logging automatically, with interface for data download or printing

6. The frame is sturdy, and the main material is ZL104 aluminum, which is light in weight and high in strength.

7. Removable imported PTFE coated heating mould, heating plate thickened and twice coated.

8. Heating plate pops up automatically with separate temperature control system, the temperature can be controlled to a minimum range.

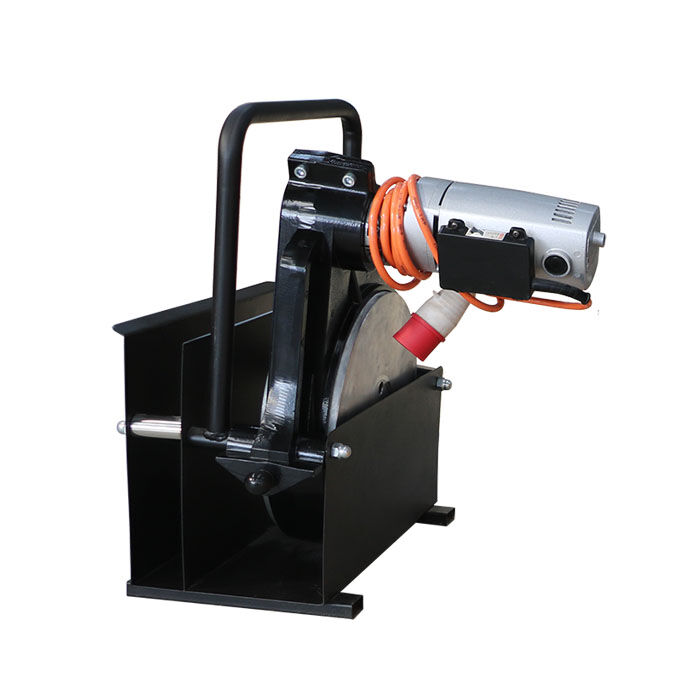

9. High power milling cutter, mirror cutter disk, strong motor, high con-centricity, smooth milling, strong with out slipping.

10. Separate two-channel timer records times in heating and cooling phases.

11. The main electrical apparatus elements are best of China, many are imported from abroad.

12. The performance of the whole machine is stable, accurate, reliable and easy to use. In pressure piping applications, providing excellent performance, the welded pipe acts as a whole pipe.

组 182.png


More than 23 years professional experience in the production and import and export business of welding machine company.



CE, SGS, ISO9001 Certificate, OEM or ODM services both available for our company.

Quick, efficient and professional response within 12 hours.



We will give you 2 years warranty after you purchasing.

Provide on line video technique Teaching, technical support and solution by chief engineer.



Strict quality control system and team, on-time delivery, and 24 hour after-sales service.


Reasonable price and shorter production cycle, accept sample order before mass order.


Strength Factory, Alibaba Verified supplier, helping you build your reputation in your pipeline projects.


图层 154.png

Jinan Bada Plastic Pipe Welding Equipment Co.,Ltd is located in Jinan city, which is the capital of Shandong province. It is a professional manufacturer for hot melt machine producing. The main products are Bada series butt fusion welding machine, automatic butt fusion welding machine, pipe fitting welding machine, saddle-shaped taper pipe butt fusion welding machine,plastic pipe multi-angle cutting saw, PPR socket welder and other auxiliary building machines. We have the most advanced technology and producing experience. The R&D department have more than 10 designers, we have cooperated with Zhejian Univeraty for more than 2 years that our technology is the most advanced in China, our electrofusion welding machine is the best in china. The products have passed the ISO9001 quality system certification and CE certification. The products are sold at home and abroad. Our products have already been sold to America, Chile, the Middle East, South Africa, Southeast Asia, more than 30 countries and regions.
