Automatic butt welding machine 450MM

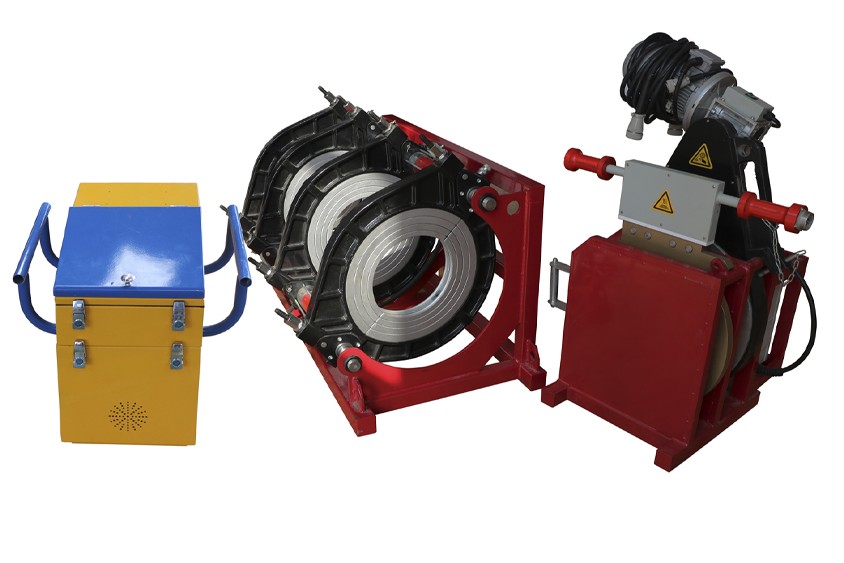

Automatic Butt Welding Machine
280mm-450mm,Automatic butt fusion welding machine is a new generation of polyethylene pipe automatic welding equipment. The butt fusion welding machine can complete the welding process automatically according to the national standard, so as to ensure the reliability of the welding and eliminate the interference of human factors as far as possible.

Share :


Equipment SpecificationsABBD450-280
Power Supply Voltage380V  50HZ
Control Box Power1600W
Milling Cutter Head Motor Power1500W
Heating Plate Power5200W
Total Welding Power8300W
Ambient Temperature-10~ +40°
Working Pressure Range≥10Mpa

Welding Range280mm-450mm
Pressure Resolution0.01MPa
Pressure Accuracy0.1MPa
Time Resolution0.1S
Time Accuracy0.1S
Temperature Control Precision of Hot Plate±3℃
Cylinder Block Area2236m㎡
Heating Plate Ejection Time1.5-3.5S




1. Preloaded major welding standard(DVS/GIS/TSG D2002-2006), fully record the welding parameters, Welding record is true no cheat.


2. Welding process controlling by CNC system etc., as well as the processing time to reduce human interference and ensure welding accuracy.


2. Hydraulic station of integrated enclosure shielding splash and dirt.


4. Integrated hydraulic station with big touch screen control system.


5. Data logging automatically, with interface for data download or printing.


6. The frame is sturdy, and the main material is ZL104 aluminum, which is light in weight and high in strength.


7. Removable imported PTFE coated heating mould, heating plate thickened and twice coated.


8. Heating plate pops up automatically with separate temperature control system, the temperature can be controlled to a minimum range.


9. High power milling cutter, mirror cutter disk, strong motor, high con-centricity, smooth milling, strong with out slipping.


10. Separate two-channel timer records times in heating and cooling phases.


11. The main electrical apparatus elements are best of China, many are imported from abroad.


12. The performance of the whole machine is stable, accurate, reliable and easy to use. In pressure piping applications, providing excellent performance, the welded pipe acts as a whole pipe.








More than 23 years professional experience in the production and import and export business of welding machine company.





CE, SGS, ISO9001 Certificate, OEM or ODM services both available for our company.



Quick, efficient and professional response within 12 hours.




We will give you 2 years warranty after you purchasing.



Provide on line video technique Teaching, technical support and solution by chief engineer.






Strict quality control system and team, on-time delivery, and 24 hour after-sales service.



Reasonable price and shorter production cycle, accept sample order before mass order.





Strength Factory, Alibaba Verified supplier, helping you build your reputation in your pipeline projects.
