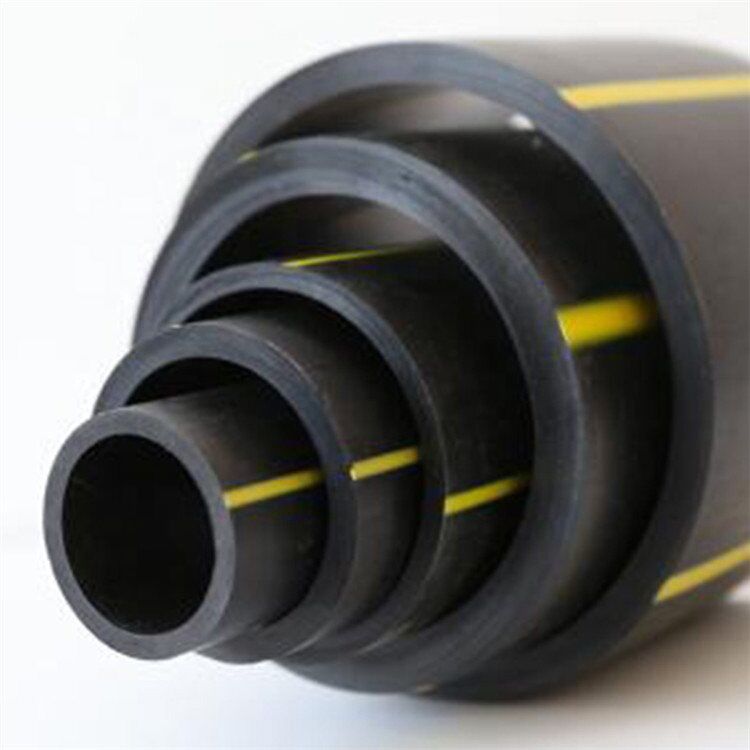

HDPE Natural Gas Pipes
HDPE pipes
HDPE natural gas pipes are made of PE100 raw materials supplied by world-leading raw material suppliers such as Borealis, Shanghai Petrochemical, and Sinopec. The high toughness and light weight of polyethylene add to the need for cost-effective and reliable solutions for gas distribution systems.
HDPE gas pipe is suitable for outdoor gas transmission and distribution. The working temperature is between -20°C and 40°C, and the long-term maximum working pressure is not more than 0.7MPa. Juno HDPE gas piping is ideal for low pressure gas delivery applications.

Share ：



Name

HDPE Natural Gas Pipes

Size

DN20-630mm

SDR

SDR11，SDR17.6

Material

PE80, PE100, PE4710

Colors

Yellow, Black or black with red strips

Standard

ISO 4437/ AS/ NZS 4130/ BS EN 1555/ SANS 8085 standard

Remarkss

Customers’ logo is available

Sample

Samples are available

Packing

International standard packing

Less than 110 mm by rolls, more than 110 mm by length 5.8 m or 11.8 m.

MOQ

Negotiable

Production

Depending on the order quantity
20 ft: 7-10 days，40 ft: 15-20 days

Certificates

ISO 14001, ISO 9001, OHSAS 18001, CE BS EN 12201, WRAS certificates

Warranty

30 years for normal using

Payment Term

T/T or L/C at sight

FOB Port

Chongqing, Qingdao, Tianjin, Shanghai, etc

Country of Original

China

SPECIFICATIONS

We provide the HDPE gas pipes from DN20-630mm diameter with the SDR11 and SDR17.6 pressure rate.

JUNNUO Pipeline

Nominal Diameter
DN（mm）

Thickness（mm）


SDR11

SDR17.6

20

2.3

2.3

25

2.3

2.3

32

3

2.3

40

3.7

2.3

50

4.6

2.9

63

5.8

3.6

75

6.8

4.3

90

8.2

5.2

110

10

6.3

160

14.6

9.1

200

18.2

11.4

250

22.7

14.2

315

28.6

17.9

400

36.3

22.7

500

45.4

28.4

630

57.2

35.7

Note: Special specifications can be customized. Please contact us for more product information and pricing.

Please send your request to the email address: admin@cnbuttwelder.com (We will respond to you within 24 hours).

ADVANTAGES

HDPE natural gas pipes have the following advantages:

  • Corrosion resistance: HDPE is an inert material that is resistant to various chemical media.
  • No leakage: HDPE pipe is connected by electro fusion and its interface strength is higher than that of the pipe itself.
  • High toughness: The elongation at break of HDPE pipes is generally above 500%. For the uneven settlement of the foundation engineering construction, its adaptability is very strong and the seismic performance is good.
  • Excellent resistance: Excellent resistance to rapid crack propagation (RCP).
  • Excellent flexibility: Excellent flexibility and scratch resistance.
  • Good wear resistance: Good wear resistance, low wall friction coefficient, low flow resistance and strong conveying capacity.
  • Non-excavation installation: A variety of non-excavation methods are available for easy construction and installation.
  • Low system cost: Low system cost and low maintenance cost can greatly reduce project costs.
  • Long service life: The buried HDPE pipe is normally used for 70 years.
  • Recyclable, environmentally friendly: HDPE materials can be reused, fully in line with the nationally advocated efficient environmental protection concept.
