SHBD 355-90

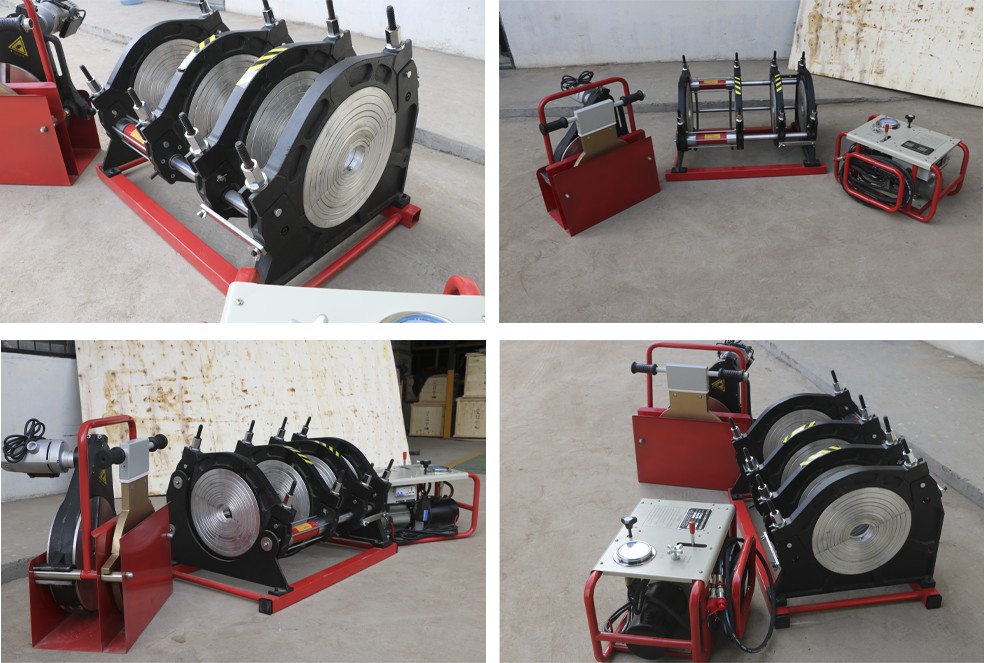

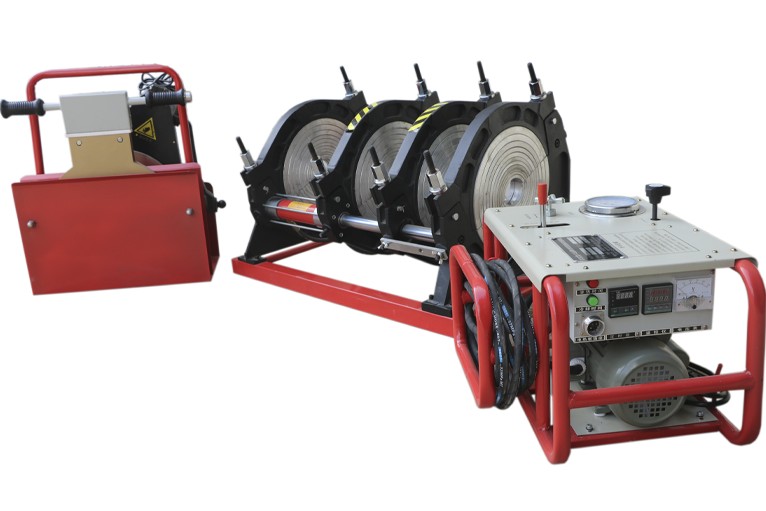

Hydraulic Butt Fusion Welding Machine
90mm-355mm,Hydraulic butt fusion welding machine Suitable for welding of plastic pipes and fittings made of PE/PP/PVDF. PP pipes and fittings for the transportation of gas, water and other fluids.

Share :



Equipment SpecificationsSHBD355-90
 Weldable Pipe Range90mm-355mm
System Pressure Regulating Range0~10MPa
Operating Voltage220V  50HZ
Heating Plate Temperature0~270℃
Surface Temperature Difference Of Heating Plate±5℃
Cylinder Block Area2000m㎡
Heating Plate Power3.5KW
Mill Cutter Power1.36KW
Hydraulic Station Power0.75KW
Total Power0.61KW




1. Hydraulic butt fusion welding machine Suitable for welding of plastic pipes and fittings made of PE/PP/PVDF. PP pipes and fittings for the transportation of gas, water and other fluids.


2. Changeable welding position enables to weld various fittings more easily.


3. All components of the hydraulic station comply with CE standards, and the control precision can reach 0.01%.


4. The frame is sturdy, and the main material is ZL104 aluminum, which is light in weight and high in strength.

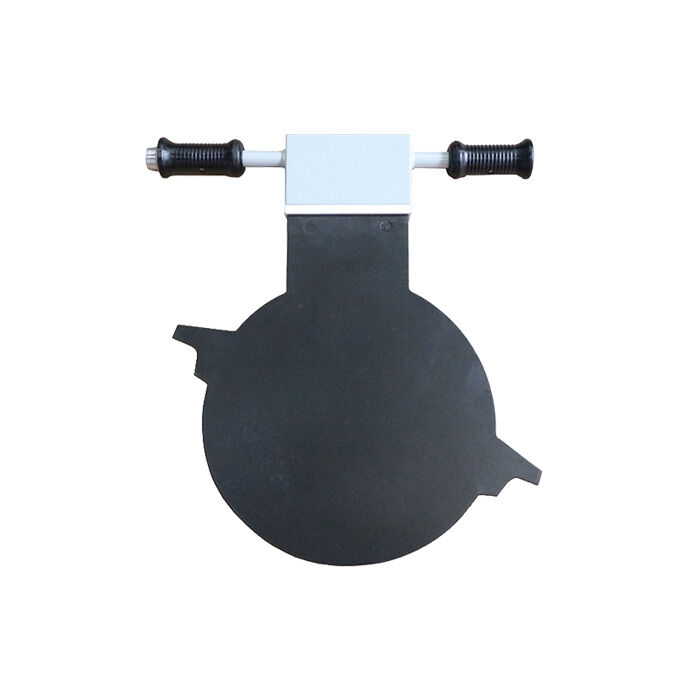

5. Removable imported PTFE coated heating mould, heating plate thickened and twice coated with separate temperature control system, the temperature can be controlled to a minimum range.


6. High power milling cutter, mirror cutter disk, strong motor, high con-centricity, smooth milling, strong with out slipping.


7. Separate two-channel timer records times in heating and cooling phases.


8. Digital high-accurate pressure gauge indicates clearer readings.


9. The main electrical apparatus elements are best of China, many are imported from abroad.


10. The performance of the whole machine is stable, accurate, reliable and easy to use. In pressure piping applications, providing excellent performance, the welded pipe acts as a whole pipe.










More than 23 years professional experience in the production and import and export business of welding machine company.





CE, SGS, ISO9001 Certificate, OEM or ODM services both available for our company.



Quick, efficient and professional response within 12 hours.




We will give you 2 years warranty after you purchasing.



Provide on line video technique Teaching, technical support and solution by chief engineer.






Strict quality control system and team, on-time delivery, and 24 hour after-sales service.



Reasonable price and shorter production cycle, accept sample order before mass order.





Strength Factory, Alibaba Verified supplier, helping you build your reputation in your pipeline projects.




图层 154.png


Jinan Bada Plastic Pipe Welding Equipment Co.,Ltd is located in Jinan city, which is the capital of Shandong province. It is a professional manufacturer for hot melt machine producing. The main products are Bada series butt fusion welding machine, automatic butt fusion welding machine, pipe fitting welding machine, saddle-shaped taper pipe butt fusion welding machine,plastic pipe multi-angle cutting saw, PPR socket welder and other auxiliary building machines. We have the most advanced technology and producing experience. The R&D department have more than 10 designers, we have cooperated with Zhejian Univeraty for more than 2 years that our technology is the most advanced in China, our electrofusion welding machine is the best in china. The products have passed the ISO9001 quality system certification and CE certification. The products are sold at home and abroad. Our products have already been sold to America, Chile, the Middle East, South Africa, Southeast Asia, more than 30 countries and regions.
